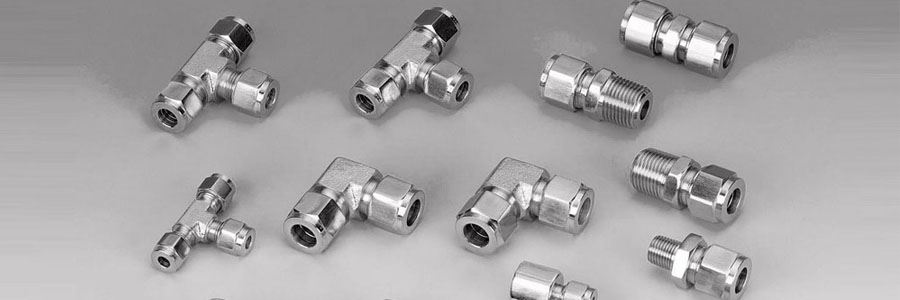

High Pressure Pipe Fittings

High Pressure Pipe Fittings

Title	Specification
Manufacturer of	High Pressure Hydraulic Hose Fittings, Adapters, Couplers
Pressure Ratings	Up to 22 500 psig (1551 bar), Over 20k to 60k PSI – (414MPa)
Temperature Ratings	Up to 1000°F (537°C), -423ºF (-252ºC ) to 1200ºF (649ºC)
Tubing sizes	1/4″, 5/16″, 3/8″, 9/16″, and 1″.
Connection type	Coned-and-threaded connection
Materials of construction	316 Stainless Steel, Super Duplex Alloy 2507, Inconel Alloy 625
End Connections	PIPE METRIC, NB, BSP, NPT, BSPT, Socket weld & Screwed
Types	NPT, medium-pressure cone, and thread adapters, male SAE/MS
Size Range	1/4, 3/8, 1/2, 9/16, 3/4, 1 in.; 6, 10, 12 mm (1 in. only available in 316SS)
Configurations	Straights, elbow, tees, cross, port connectors, tube adapters, caps, plugs
Stocking distributor of	Parker high-pressure fitting, Swagelok high-pressure fitting
Manufacturing process	High Pressure Fittings manufactured from cold-worked 316 stainless steel.

High pressure Pipes Fitting Types

High pressure Pipes Fitting Types

Applications, and Uses of High Pressure Pipe Fittings

High Pressure Pipe Fittings Supplier in India
