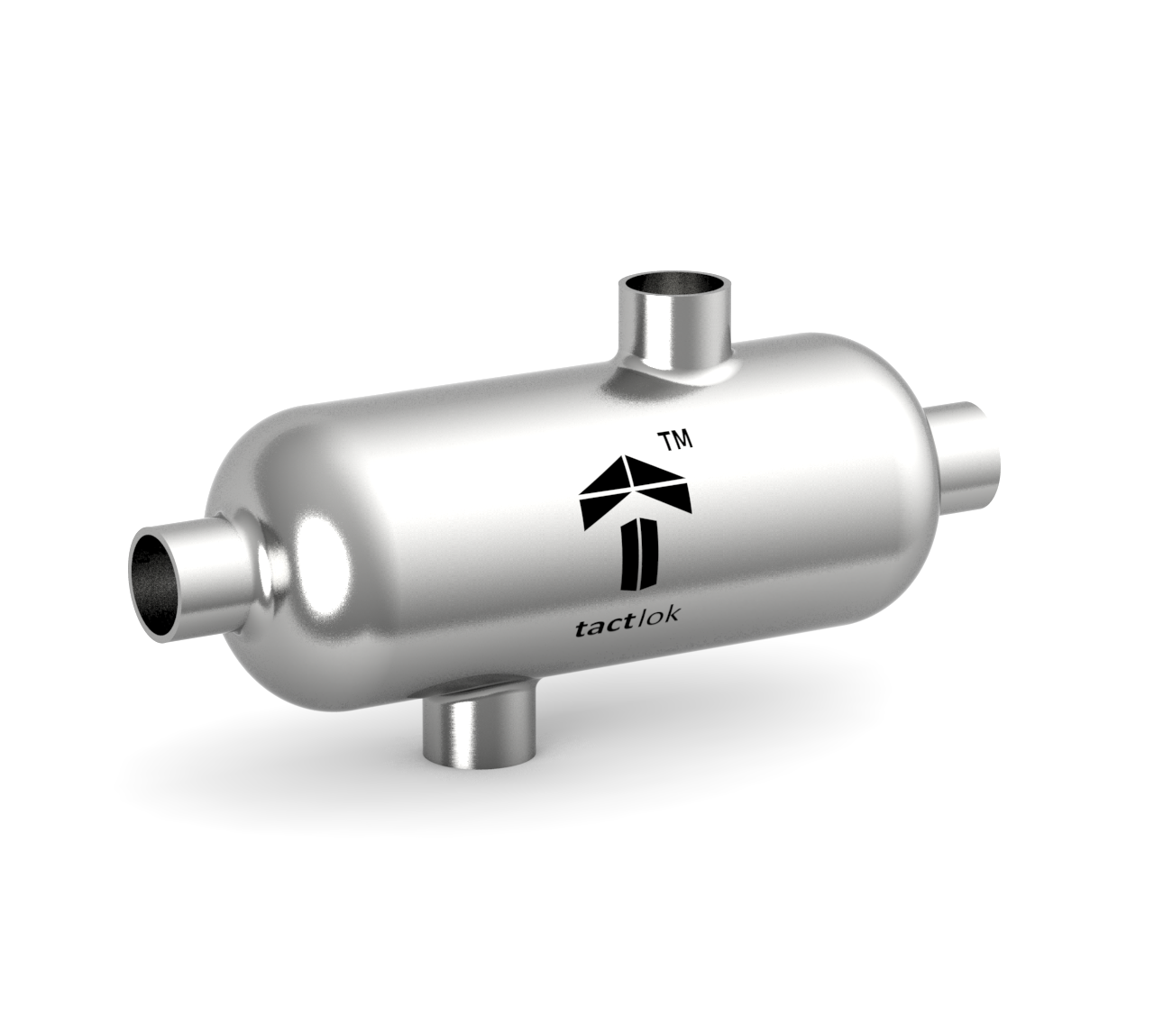

Condensate Pots

Contact us today with any questions or requirements. We strive to reply to all enquiries within 24 business hours and look forward to helping you.

HOME → CONDENSATE POTS

Condensate Pots	Specification
Material of Construction	ASTM A105 (Carbon Steel), AISI 304/L, 316/L Stainless Steel; Duplex (UNS S31803), Super Duplex (UNS S32750), Monel 400, Inconel 600/625, Hastelloy C276 on request
Standard Pipe Sizes (NPS)	2″, 3″, 4″, 6″, 8″, 10″, 12″
Standard Lengths	8″ (200mm), 10″ (250mm), 12″ (300mm), 18″ (450mm), 24″ (600mm)
Custom Lengths	Available up to 72″ (1800mm)
Working Pressure	Up to 6000 PSIG (414 Bar) standard; Higher pressures available on request
End Connections	NPT/BSP Threaded, Socket Weld (ASME B16.11), Butt Weld (ASME B16.9), Flanged (ASME B16.5)
Process Connections	1/2″ or 3/4″ NPT/BSP (standard); 1″, 1-1/2″ on request
Drain Connection	1/2″ or 3/4″ NPT/BSP with ball valve or plug
Vent Connection	1/4″ or 1/2″ NPT/BSP with plug or valve
Volume	2 Liters to 50 Liters (depending on size and length)
Wall Thickness	Sch 40, Sch 80, Sch 160, XXS, or custom
Surface Finish	As-welded, pickled, passivated, electropolished, or painted
Temperature Range	-196°C to +800°C (depending on material)
Mounting Orientation	Vertical (standard) or Horizontal
Sour Service	Optional NACE MR0175 / ISO 15156 compliance

Top Selling Condensate Pots

Applications, and Uses of Condensate Pots

▪ Oil, and Gas Industry.
▪ Ship Building Industry.
▪ Power, and Telecom Industries.
▪ Food, Beverage, and Dairy.
▪ Municipal and Utility.
▪ Mining and Construction.

The Supplier of Condensate Pots in India - SFT Valve Fittings

Based at the leading provider and stockist for Condensate Pots for domestic and international markets across India are typically performed through an established shipping network. As per shipping procedures and protocols, Condensate Pots are shipped from manufacturers to ports located throughout India's major cities and regions to support the timely arrival of these products to customer locations.

Bengaluru

Mumbai

Chennai

Hyderabad

Kolkata

Pune

New Delhi

Ahmedabad

Jaipur

Surat

Salem

Gandhinagar

Bhiwandi

Tiruppur

Sivakasi

Jamnagar

Thiruvananthapuram

Rajahmundry

Bhubaneswar

Vijaywada

Firozabad

Bokaro Steel City

Rajkot

Bharuch

Panna

Raipur

Cochin

Ludhiana

Panipat

Durgapur

Peenya

Pimpri-Chinchwad

Channapatna

Kharagpur

Nashik

Bareilly

Varanasi

Haldia

Rourkela

Bangalore

Moradabad

Indore

Visakhapatnam

Trivandrum

Pithampur

Dibrugarh

Angul

Gwalior

Coimbatore

Kannur

Nagpur

Vadodara

Rudrapur

Noida

Agra

Bhagalpur

Jamshedpur

Bhilai

Lucknow

kanpur

High-Integrity Condensate Pots by SFT Valves Fittings

SFT Valves Fittings. offers an excellent selection of high-quality Condensate Pot devices (aka seal pots, condensate chambers, steam pots, DP transmitter seal pots) that have been designed and manufactured to provide consistent and stable condensate levels; therefore ensuring accurate differential pressure measurement from DP transmitters over long periods of time.

Overview of the Product

Condensate pots are a necessary piece for steam flow measurements and are located in the impulse lines adjacent to the tapping point on steam pipes. The two primary purposes of the condensate pots are:

1. **To Provide a Constant Head**: When steam enters the pot, it will condense, forming a uniform column of liquid so that pressure is transmitted to the DP Transmitter without interruption due to either live steam or partial condensation occurring within the impulse lines.

2. **To Protect the Instrument**: The condensate barrier will prevent hot steam, particles, scale, and corrosive material from reaching the sensitive diaphragm of the transmitter, thus extending the life of the instrument and maintaining its accuracy.
