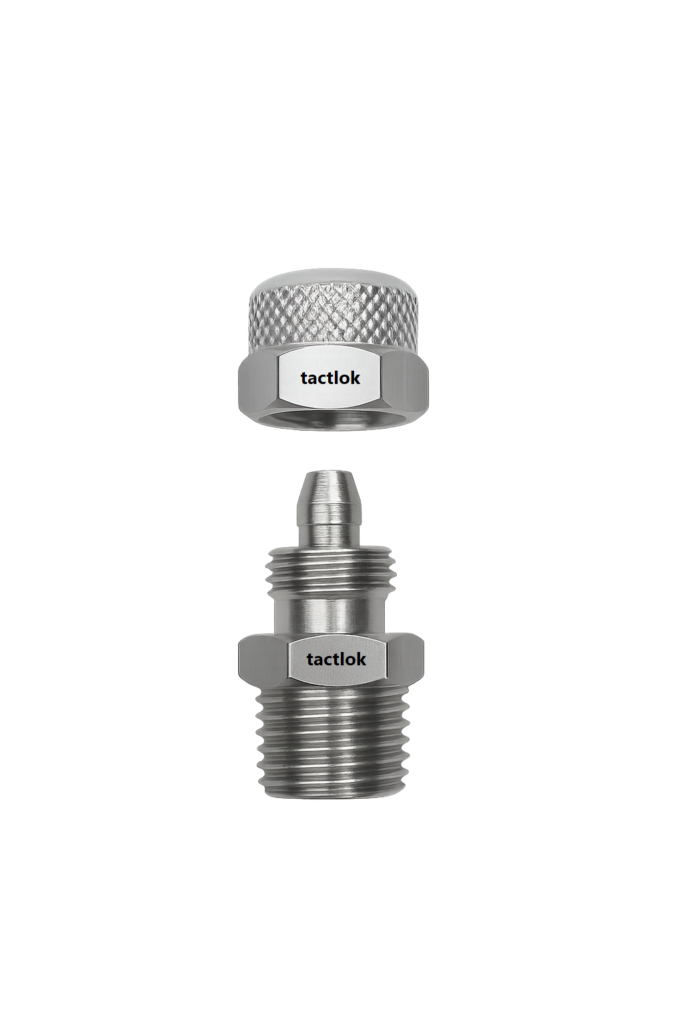

Pushon Fittings / Rapid Screw Fittings
Contact us today with any questions or requirements. We strive to reply to all enquiries within 24 business hours and look forward to helping you.
HOME → PUSHON FITTINGS / RAPID SCREW FITTINGS
| Specification | Details |
|---|---|
| Material of Construction | SS304, SS316, SS316L, Duplex SS, Monel, Hastelloy (on request) |
| Tube Compatibility | Nylon (PA6, PA11, PA12), Polyurethane (PU), Polyethylene (PE), PTFE, FEP, PFA, Teflon®, Rubber hose |
| Working Pressure | Vacuum to 20 Bar (290 PSI) standard; High-pressure versions up to 50 Bar (725 PSI) available |
| Operating Temperature | -20°C to +120°C |
| Thread Standards | BSPP (ISO 228), BSPT, NPT (ASME B1.20.1), Metric (DIN 13), JIS, SAE |
| Surface Finish | Polished |
| Tube Size Range | 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm; 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″ |
| Thread Size Range | M5, M6, M8, M10, M12, M16; 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″ |
| Media Types | Compressed air, inert gases, vacuum, water, hydraulic oil, coolants, lubricants, mild chemicals |
High-Quality Push On / Rapid Screw Fittings By SFT Valves Fittings
High-Quality Push On / Rapid Screw Fittings By SFT Valves Fittings
Applications, and Uses of Push On / Rapid Screw Fittings
- ▪ Oil, and Gas Industry.
- ▪ Ship Building Industry.
- ▪ Power, and Telecom Industries.
- ▪ Food, Beverage, and Dairy.
- ▪ Municipal and Utility.
- ▪ Mining and Construction.
